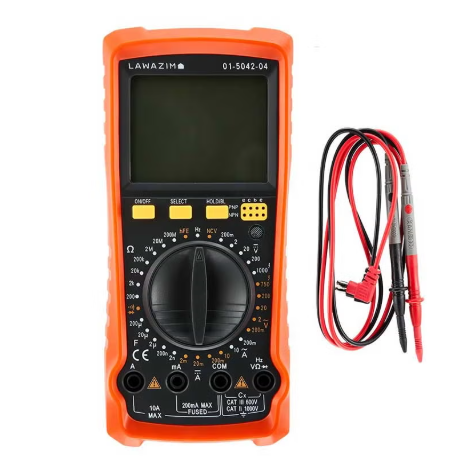

LAWAZIM Digital Multimeter – Auto/Manual Ranging, 1000V AC/DC, 10A, True RMS, Backlight

The LAWAZIM Digital Multimeter is a versatile tester designed for accurate troubleshooting in installation, maintenance, and DIY tasks, combining auto and manual ranging for precise control across core measurement functions. It measures high‑voltage circuits up to 1000V AC/DC and current up to 10A, and adds resistance, capacitance, frequency, duty‑cycle, temperature, diode, and continuity tests for full coverage in one tool. A clear backlit display, data hold, MAX/MIN capture, relative measurement, and auto power‑off streamline field use, while overload protection enhances safety during everyday work.

Measurement Ranges

• DC voltage: 400mV, 4V, 40V, 400V, 1000V

• AC voltage: 4V, 40V, 400V, 750V (select models list up to 1000V AC; typical DMMs specify 750V AC)

• DC current: 400µA, 4mA, 40mA, 400mA, 10A–20A class (typical max 10A on many handhelds)

• AC current: 400µA, 4mA, 40mA, 400mA, 10A–20A class (typical max 10A)

• Resistance: 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ

• Capacitance: ~40nF to 200µF typical; broader ranges up to 100mF shown on comparable model

• Frequency: from Hz to kHz/MHz ranges (examples up to 20MHz on similar units)

• Duty‑cycle: supported

• Temperature: approx. −20°C to 1,000°C with probe (model‑dependent)

• Diode/continuity: supported with audible beeper

Functional Features

• Auto/manual ranging with True RMS on comparable 1000V meters, improving accuracy on non‑sinusoidal signals

• Backlit LCD, data hold, MAX/MIN, relative (REL) measurement, low‑battery indicator, auto power‑off

• Overload and input protection; typical CAT safety on similar models (check product label for exact CAT rating)

Typical Use Cases

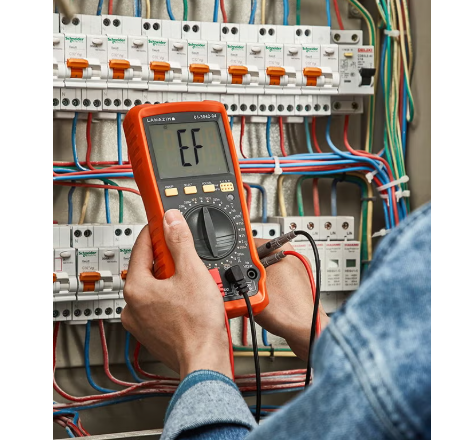

• General electrical maintenance, appliance repair, HVAC checks, automotive circuits, hobby electronics, and workshop diagnostics.

Note: Exact sub‑ranges and safety category can vary by batch or listing; verify the sticker/manual of the received unit for precise CAT rating and included accessories (test leads, temperature probe).
