Welders & Pipe Fitters Wrap Around Layout Tool

Achieve unparalleled precision and efficiency in pipe fabrication with the Welders & Pipe Fitters Wrap Around Layout Tool. Engineered for the demanding needs of welding and pipefitting professionals, this versatile tool simplifies the complex process of marking and measuring pipes for accurate cutting, fitting, and fabrication. It is an indispensable aid for making precise markings directly on pipes, effectively eliminating common errors associated with traditional measuring methods.

The Wrap Around is designed as both a flexible ruler and a template, ensuring consistent and accurate lines across various pipe diameters. It is crafted from a non-asbestos, heat-resistant material that can withstand temperatures up to approximately 550°C (360°F), ensuring its durability and reliability in harsh welding environments. The material also offers outstanding resistance to oil, gasoline, kerosene, water, and sea water.

Key Features & Benefits (Applicable to all variants):

• Precision Pipe Layout: Enables welders and pipe fitters to draw straight lines and precisely determine angles on pipes, critical for accurate cuts and fits.
• Error Reduction: Helps to minimize marking and measuring errors, leading to higher quality work and reduced material waste.
• High-Density & Tough Material: A heavy-duty product made of tough, flexible material for robust service.
• Comprehensive Markings: Features screen-printed tape measures (limiting the need for an extra tape measure), circumference and quartering scales, a protractor, scale, and 45° angle markings.
• Seamless Finish & Dimensional Accuracy: Designed to facilitate a seamless finish with exceptional dimensional accuracy, contributing to defect-free results.
• Rust Resistance: Built to resist rust, ensuring longevity in various working conditions.

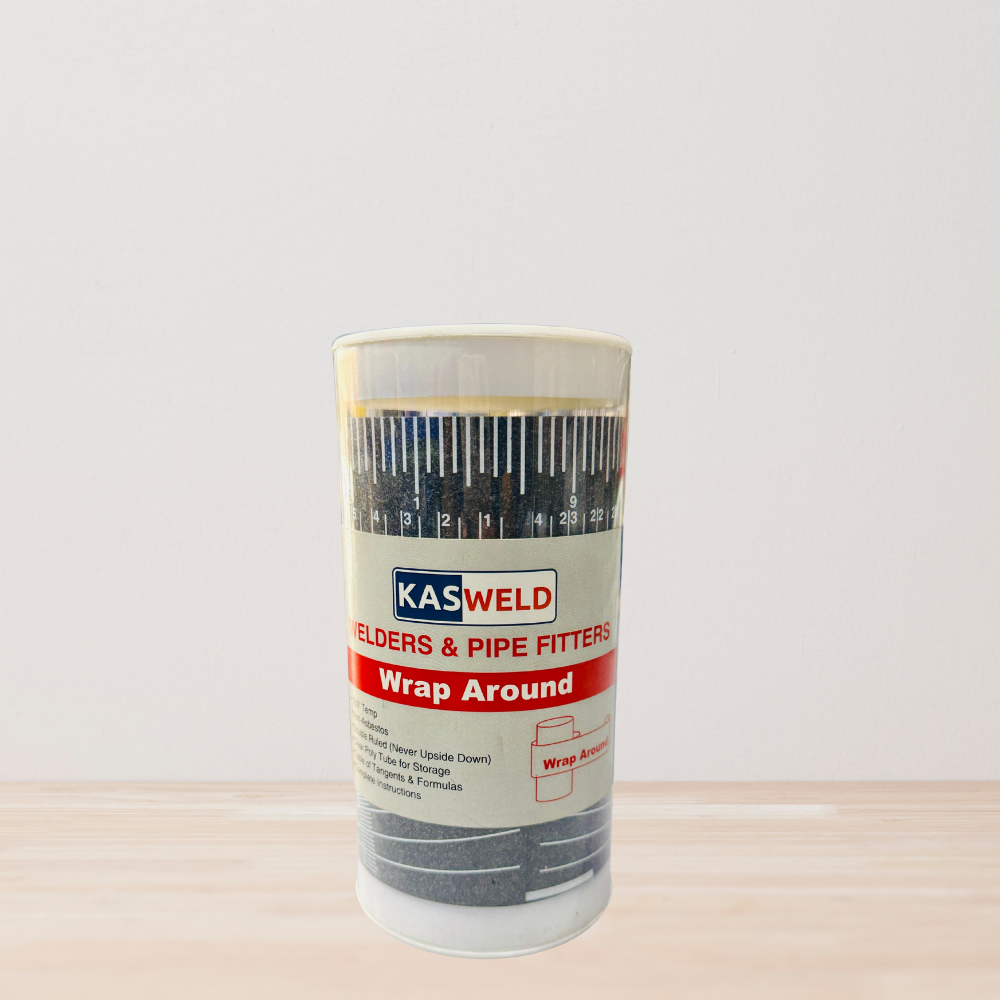

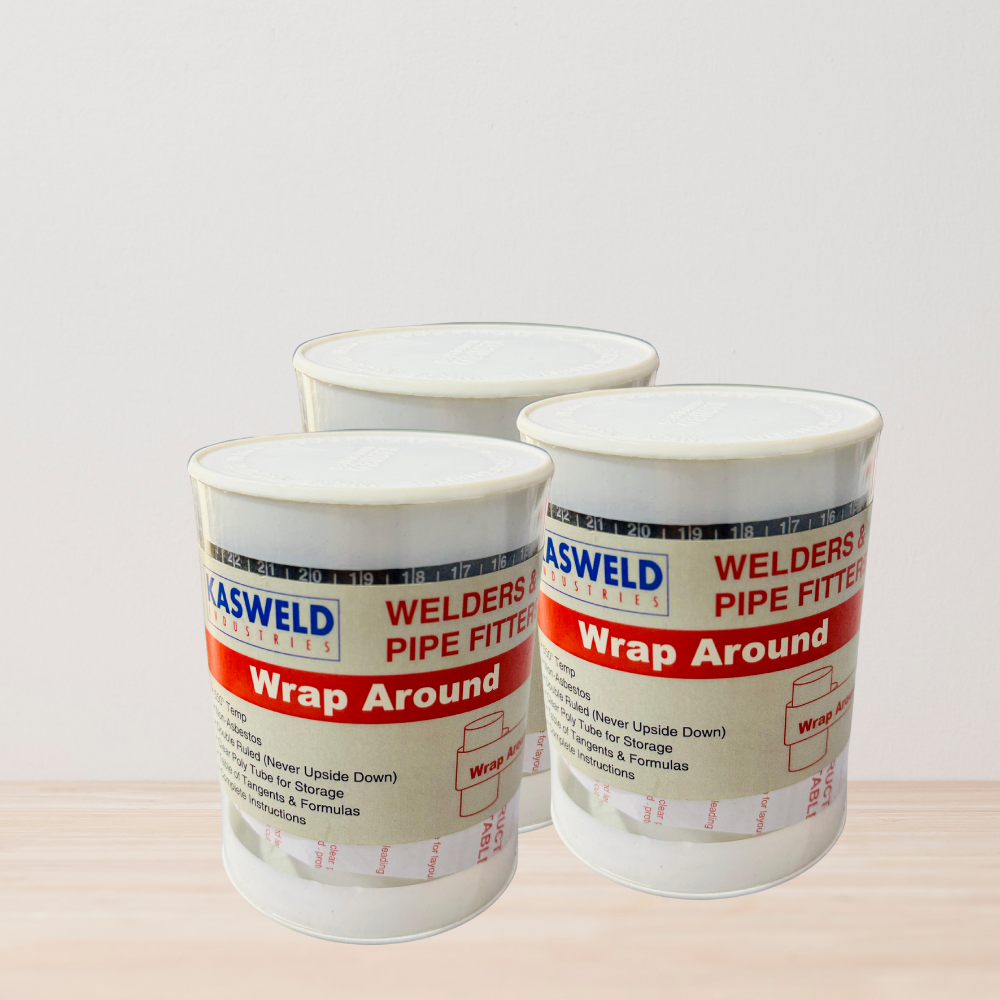

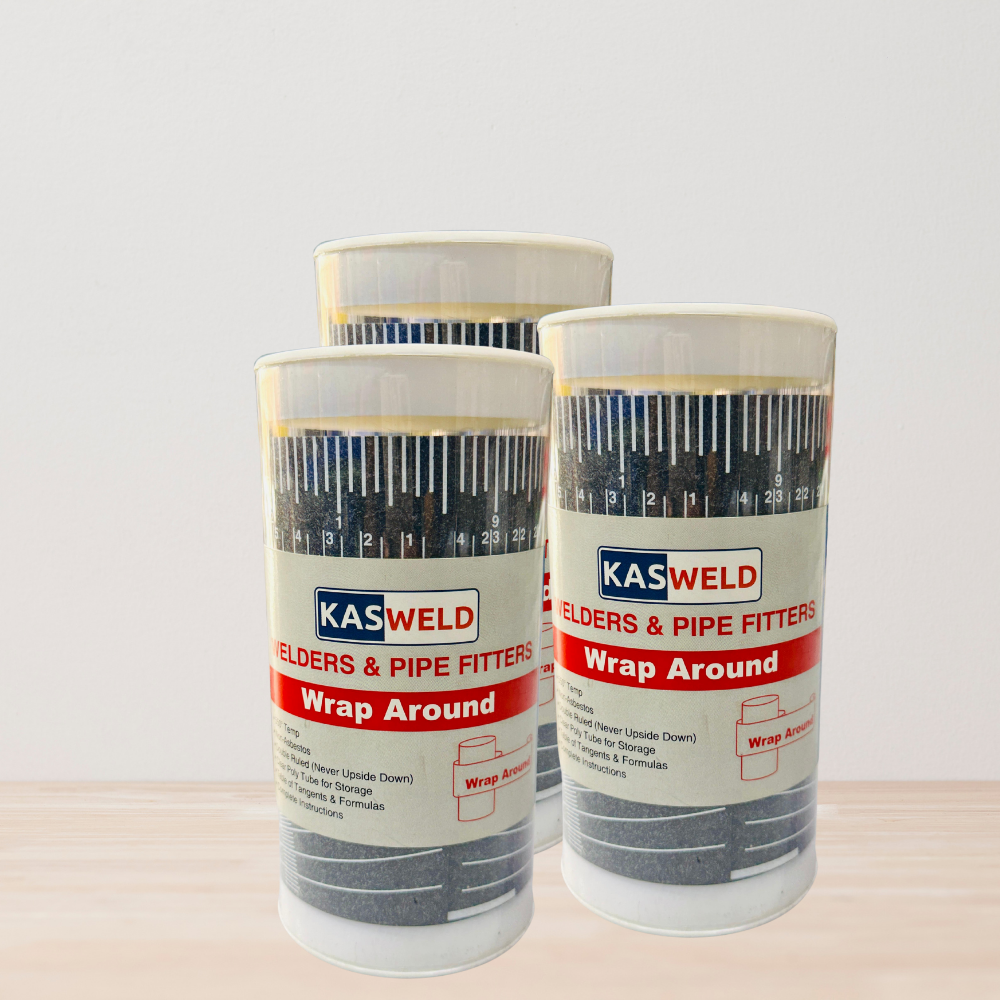

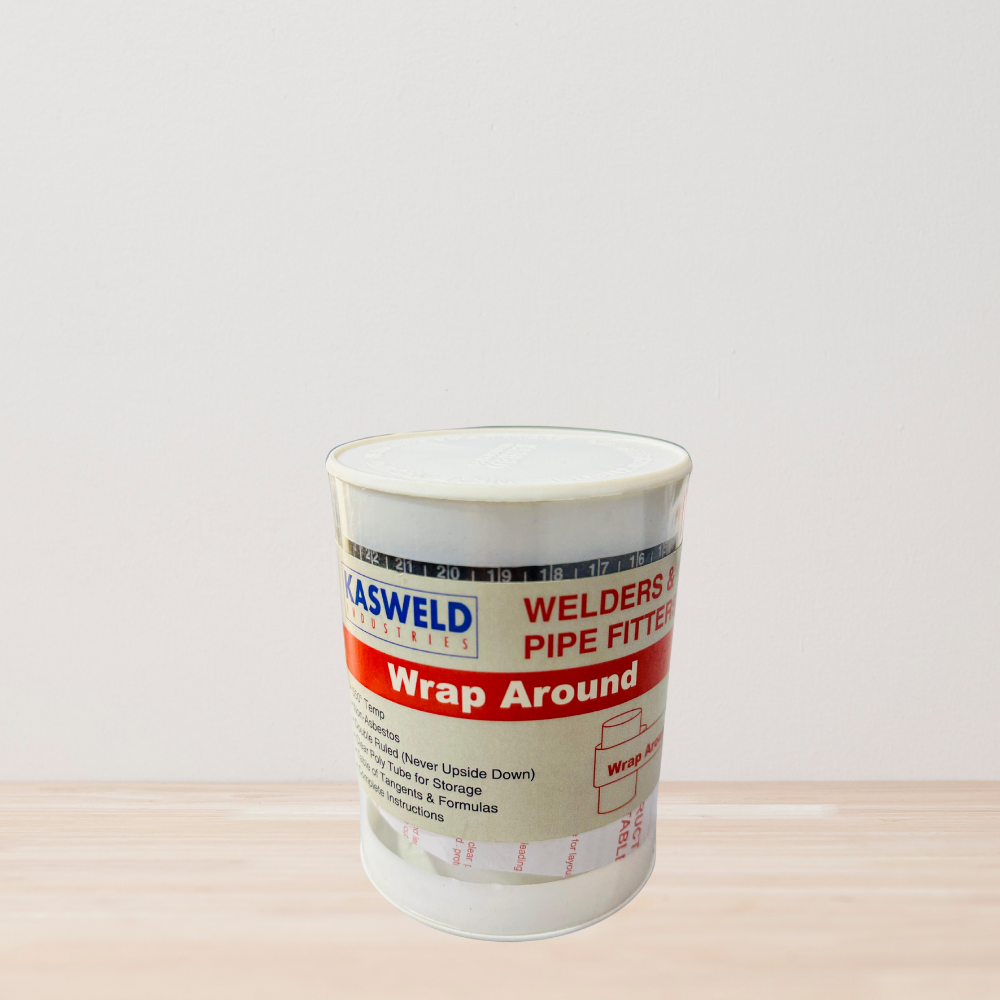

• Reusable Packaging: Each wrap is conveniently packaged in durable, reusable containers for easy storage and protection.
• Versatile Usage: Ideal for pipe making and suitable for pipes transporting chemical, gas, and water fluids. It is a tool used by all layout men, fitters, and welders.

Trust for superior quality and precision in all your pipe fitting and welding projects."

Option Values & Details (for each variant):

• KAS164GG: Pipe Wrap Round M - 3.88"W x 4'L (Range OD: 75-150mm [3-6"])
• KAS177GG: Pipe Wrap Round L - 5"W x 7'L (Range OD: 75-250mm [3-10"])
• KAS179GG: Pipe Wrap Round XL - 5"W x 9'L (Range OD: 100-300mm [4-12"])
• KASWR303L: Pipe Wrap Round L - 2-5/8"W x 3'L (Range OD: 66mm x 910mm [1-7"])
• KASWR715L: Pipe Wrap Round L - 7"W x 15'L (Range OD: 178mm x 4570mm [12-48"])
