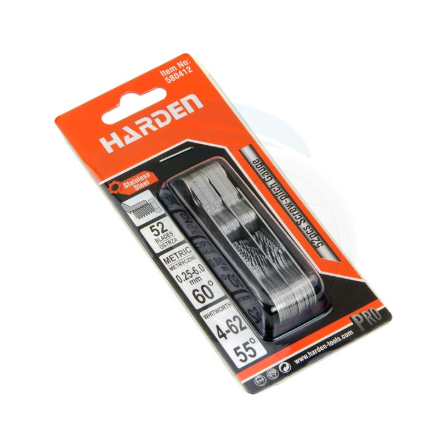

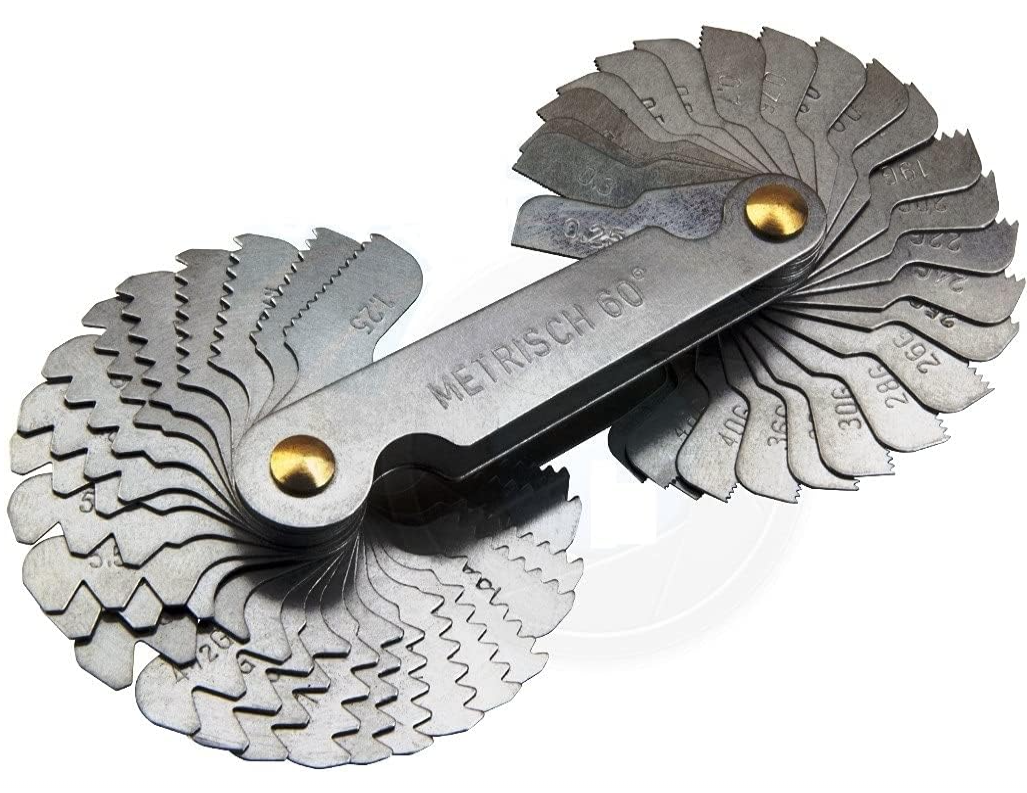

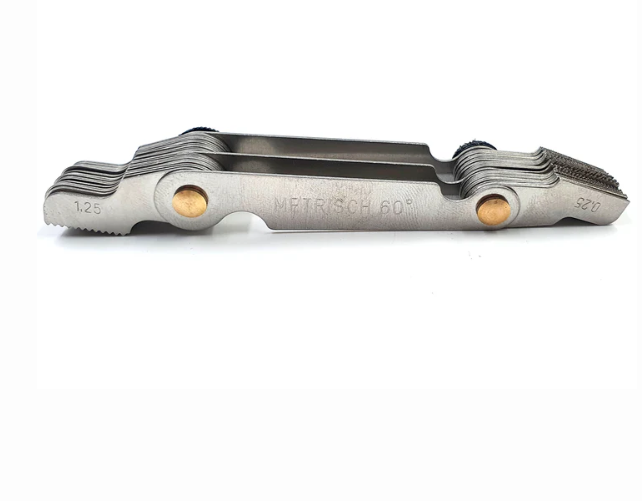

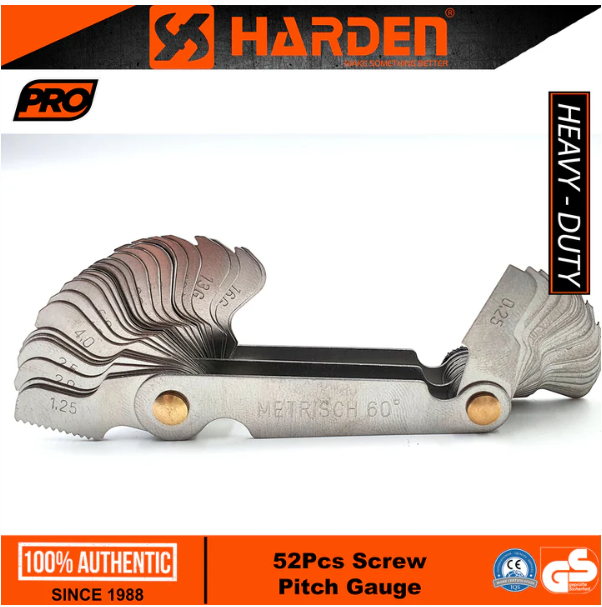

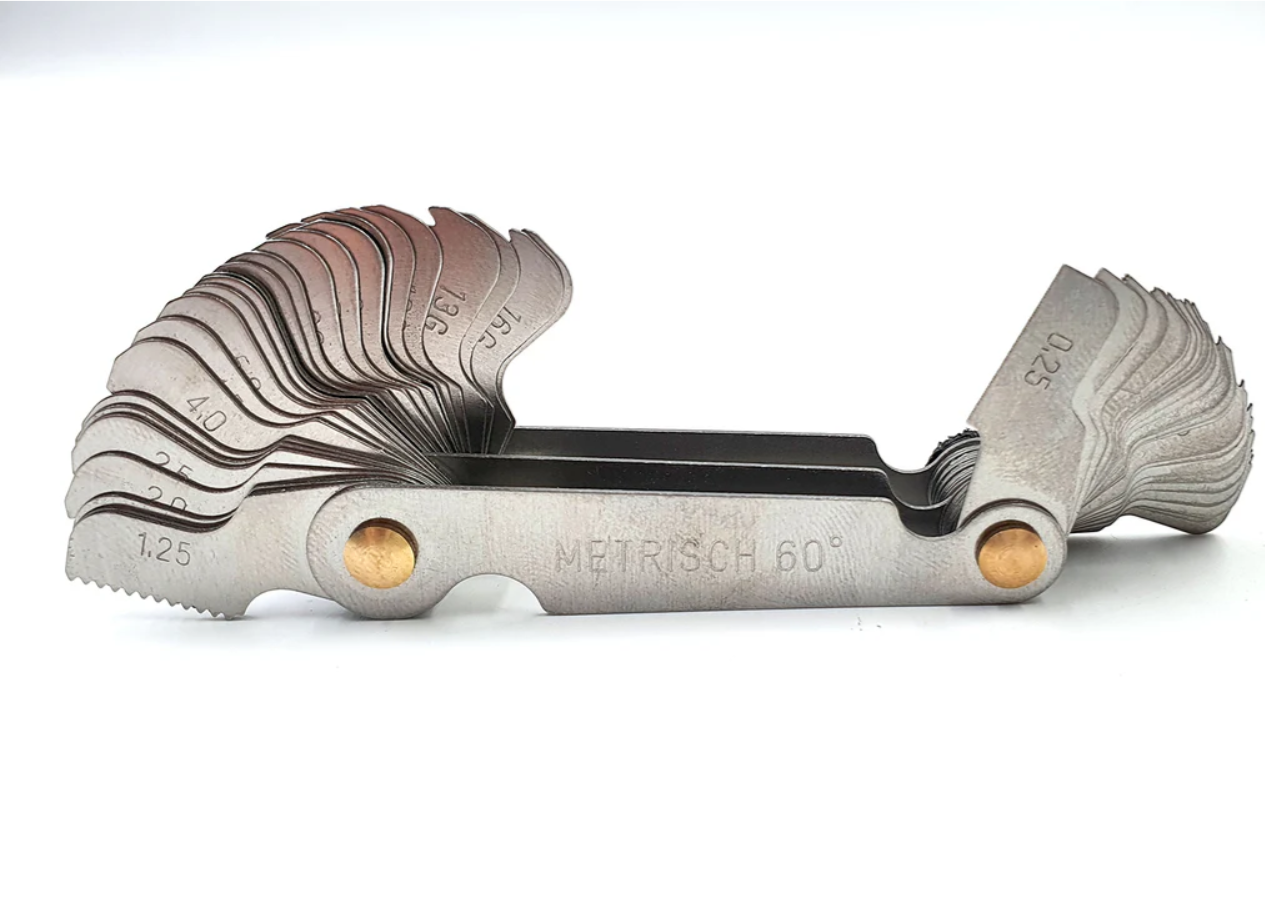

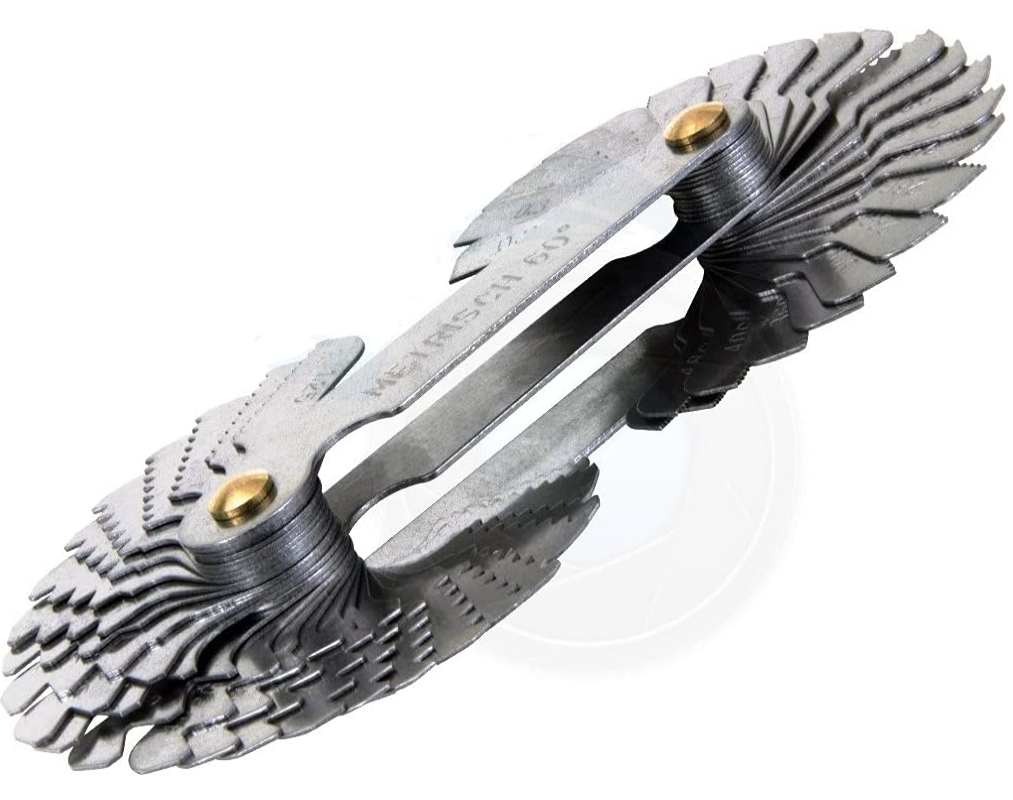

Harden 580412 Thread Pitch Gauge, 52‑Leaf, Metric 60° & Whitworth 55°, Hardened Steel, Pocket Size

A compact 52‑leaf thread pitch gauge that identifies both metric 60° and British Standard Whitworth 55° threads in seconds, ideal for automotive, machinery, and restoration work. Made from hardened, corrosion‑resistant steel with clear size markings on each leaf, the tool folds into a pocket‑size body for safe carry and quick reference on the job.

Key features

• Dual standard coverage: Metric 60° and BSW/Whitworth 55° in one gauge

• 52 precision‑cut leaves with etched size markings for fast, accurate ID

• Hardened steel, polished finish for durability and rust resistance

• Fold‑out, fan‑style leaves with a pivot screw for smooth selection

• Pocket‑sized and lightweight for field service, shop, or toolbox use

Specifications

• Model: 580412

• Leaves: 52 total (mixed metric and Whitworth)

• Typical metric range: 0.25–6.0 mm pitch

• Typical Whitworth range: 4–62 TPI (G)

• Material/finish: Hardened steel, corrosion‑resistant finish

• Form factor: Folding, pocket‑size with locking pivot

In the box

• 1 × Harden 580412 52‑leaf dual‑standard thread pitch gauge
