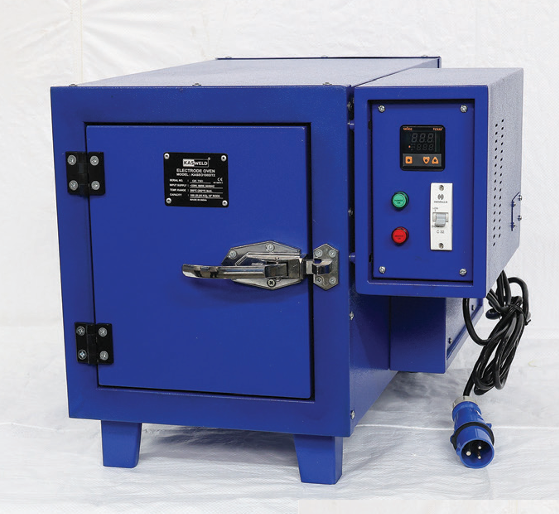

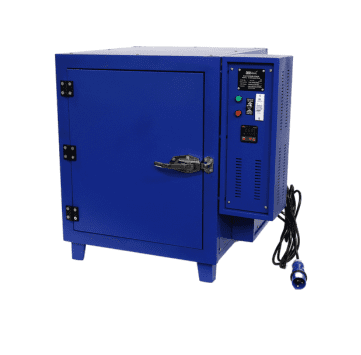

Electrode Bench Oven (EO100DT2 KASWELD) is a heavy-duty digital oven designed for precise and safe electrode storage and handling in welding operations. With a generous 45kg (100lbs) electrode capacity

Key Specifications:

• Electrode Capacity: 45kg (100lbs)

• Max Electrode Size: 18” (457mm)

• Working Voltage: ~220V AC

• Wattage: 500W

• Supply Cable: 14AWG x 3C

• Temperature Range: Up to 200°C, adjustable via digital temperature controller

• Heating Element: U-shaped tubular heater for uniform heating

• Thermal Insulation: 2” glass wool for maximum heat retention

• Thermostat: Digital temperature controller for precise regulation

• Outer Dimensions: 610mm(L) x 515mm(W) x 495mm(H)

• Inner Chamber: 500mm(L) x 200mm(W) x 220mm(H), divided into 2 sections

• Net Weight: 48.3kg

• Shipping Weight: 35.7kg

• Body Material: Pre-galvanized steel sheet with powder-coating for corrosion resistance

• Indicator: Light for operational status

• Safety: Fully insulated with robust construction; comes with comprehensive safety precautions listed in the documentation

• Shape: Rectangular, bench-top design

Features & Benefits:

• Digital Temperature Control: Set and maintain precise storage temperatures for all types of welding electrodes to avoid moisture contamination.

• Large Capacity: Stores up to 45kg of electrodes—ideal for busy workshops and industrial welding setups.

• Effective Insulation: Dual-thickness glass wool ensures energy efficiency and safety.

• Durability: Made from powder-coated, pre-galvanized steel for longevity in harsh welding environments.

• Dual Sections: Inner basket and chamber design for organized storage and easy access.

• Safety Focused: Equipped with indicator lights and insulation; complies with international safety standards for welding ovens.

Typical Applications:

• Welding shops

• Industrial fabrication plants

• Construction sites

• Shipyards

• Anywhere electrode moisture control is essential
